SOLUTION
Remote application to train engineers immersively.
Panels for job directions.

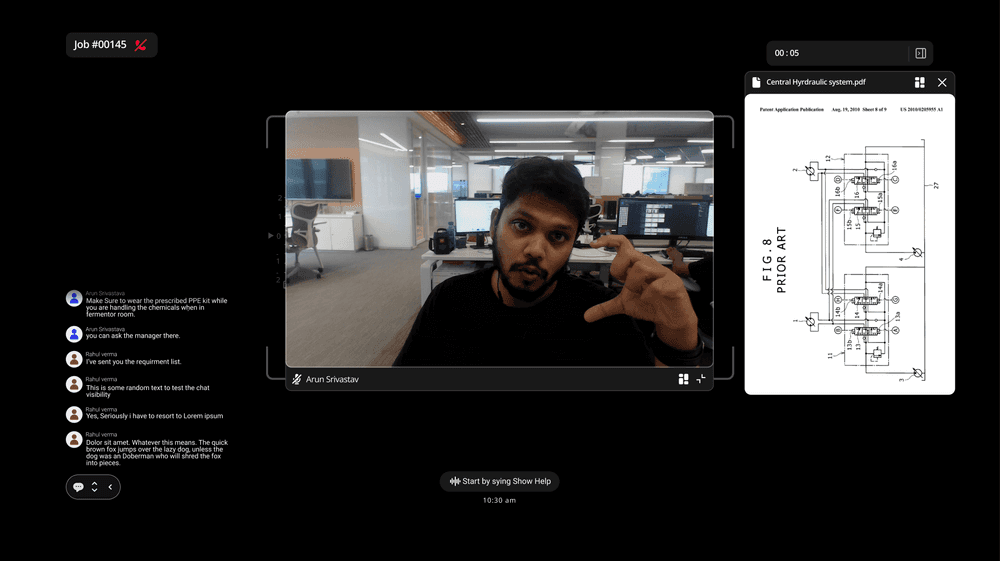

Create calls with employees.
Chat to take feedback on task.
Movable windows for flexible use of visual space.
Live demonstrations.
Allows for adjustment to XR.
Open space and visible surroundings.
Movable windows for flexible use of visual space.
Minimalistic landing page.
After 15 minutes of activity, prompt to take break to avoid headache/dizziness while wearing glasses.
Prompt to take break.
PROBLEM SPACE
On-site engineers require robust training.
Engineers working high-risk jobs, for example, oil rig workers, automotive engineers, construction workers, require extensive training, but many companies do not have the budget, time, or safety measures to train engineers on-site.
JioGlass is a mixed reality smart glass product that hosts applications. This is a means to train engineers in a more immersive environment than desktop, while saving on transportation costs, time, and staying within safety regulations.
Immersive mixed reality training and onboarding for engineers, integrated with their office workflows.
Training for Engineers Working in
High-Risk Environments
How do I tackle a problem I know very little about?
1
Understanding Mixed Reality
Experiencing XR
Expert Interview
2
Research
Employee Interviews
User Personas
3
Design
Sketches
Lo-Fidelity
Mid-Fidelity
4
Final Solution
Final Designs
Usability Testing
Reflection
APPROACH
What does mixed reality actually feel like?
I had never experienced mixed reality, outside of amusement parks. To understand how to design for mixed reality, I spent time experiencing the leading products in the space, including JioGlass.
Standout features of XR interfaces:
If the purpose of XR is a ‘more immersive’ experience, why do windows still look like desktop interface windows?
How would someone operate hands-free?
My head started hurting 10-15 mins into the experience. What is the average engagement time for these devices?
Trying the Magic Leap!
Things to question about XR interfaces:
UNDERSTANDING MIXED REALITY
AUDIO FEEDBACK
To accompany interactions and give directional cues.
ADAPTIVE BLURRING
Based on focal point at a point in time.
HAPTIC FEEDBACK
To accompany interactions, give warnings, and provide sensory information.
I got insights on design best practices from an unbiased industry expert, focusing on top-tier XR design principles across all platforms.
Interview Notes for Michelle Cortese, Meta & NYU:
Key takeaways from discussion with XR expert.
Users new to XR require familiarity
XR tools use audio, haptic feedback, and spoken instructions.
Measures are taken for digital safety
Users are unsure about training in XR.
The product needs to be linked to the current information management system.
Mechanic, Manufacturing Division
Manager, Manufacturing Division
Engineer, Manufacturing Division
XR Engineer, Tesseract
I interviewed 4 members in the company to gain an understanding of the attitudes of potential users and managers. Population:
All 4 out of 4 users were unsure about adding this technology in office workflows. Clearly, we had work to do.
Key insights from interviews:
So, what do the users look like?
These personas did not necessarily help me in that moment, but I was told to create them by my manager. Turns out, these came in use later in the process *foreshadowing…*
Persona 1
Raj
53 yrs | Operations Executive
Driven | Attentive | Manages workers
Characteristics
Tries to set up opportunities for mechanics and engineers to train in real-life environments.
Requires many permissions from higher leadership to organise training programs.
Interest but apprehensive about XR training options.
Persona 2
Kumar
40 yrs | Mechanic
Focused | Tired | Works on pipes
Characteristics
Educated in engineering but has not got the full-depth of experience in specialist mechanics.
Finds training taxing and tiring with many things thrown at him simultaneously.
Does not have any knowledge of XR applications.
RESEARCH
USE XR WHEN NEEDED
The whole user flow should not be localized on the JioGlass.
USERS NEED TO TAKE BREAKS
Average engagement is 10 mins. Shorten training blocks.
USERS ARE SKEPTICAL ABOUT XR
Users felt unsure about the need of XR for training.
MY CONTRIBUTION
Management was a little unsure about the need for research as part of this process, since some preliminary research was done already. I pushed for conducting UX research to make sure I had data for design.
To start on the lo-fi wireframes, I had to understand HOW to design for XR.
Design process
Designing for XR was a challenge.
I had no experience in drawing XR mockups. I started with super simple drawings, trying imagine what 3D sketches would look like.
While this approach helped me orient myself, I had to be able to represent information in Figma.
With a much better understanding of how XR is wireframed through zones, I started designing the flow on Figma.
The leadership told me throughout this process that they wanted a learning dashboard as part of their final product. So, I started building wireframes in the “dashboard-style direction”.
A constant issue I came up against was deciding the actual frames required for the MVP.
Dashboard Iteration
Start Task/Job Iteration
I realized that I was going in the wrong direction.
Mid-fi interactive prototype with annotations to understand interactions.
I felt that the designs did not line up with the user research, and a proper pivot would be needed to get back there. Junior designers told me to communicate my research with the leadership, and pitch the direction of the application that was more directly aligned with the user research.
I worked on simple flows, and tried to understand the interactions of the device better. Here is mid-fidelity flow, that is taking the user through a task:
The green labels describe the points of interaction.
So, I set up a meeting with the team, and prepared evidence-based insights better aligned with the user research. The personas were useful here!
In particular, I wanted to emphasize that there was no need for Dashboard, Calendar, and Messages features.
My points:
XR design should prioritize zones based on user eye-gaze and focal points
Other zones should hold information that is less important, since this will often be blurred out, or not visible at all.
In Figma, we can represent this through zones in the design.
The design does not need to have 3D features, since Unity will adjust the elements on the page into a “curved” interface.
Major iteration 1
Major iteration 2
Major iteration 3
Final Design
Every iteration involved sub-iterations. I took feedback from peers for these sub-iterations, and feedback from my manager for the major iterations.
Iteration 1 - Dashboard
Iteration 2 - Dashboard
Iteration 3 - Dashboard
✘ Unnecessary occupier of space
✘ Unnecessary occupier of space
✘ No clear use of space
✘ Fixed top bar is a bad design practice for XR, since it constantly looms over user’s head
✘ Very small floating buttons are difficult to aim at with controller
✘ Cards have very squished and text-heavy information
✘ Text-heavy calendar format
Better card format, larger
Top bar converted to side hamburger menu
Ability to use voice interactions
✘ Section is unnecessary, since tasks are assigned
✘ Too much text
Iteration 1 - Start Task/Job
Iteration 2 - Start Task/Job
Hamburger menu
✘ Fixed top bar is a bad design practice for XR, since it constantly looms over user’s head
✘ Very small floating buttons are difficult to aim at with controller
✘ Large image is unnecessary for task
Empty space allows user to view items/information in background
✘ “Course is incorrect terminology
Dashboard Iterations
Task/Job Iterations
DESIGN
USERS WOULD NOT USE THE GLASSES UNLESS NECESSARY
as mentioned many times in the research.
USERS SAW CALENDARS, DASHBOARDS, ETC. THROUGH THEIR DESKTOPS
these features would be redundant.
TOO MUCH VISUAL SPACE WAS BEING OCCUPIED
based on the Tesseract design guidelines.
MY CONTRIBUTION
2 out of 3 of my suggestions were accepted! The leadership felt that Messages was an important feature to include on the glasses themselves, in the case of an emergency during training or evaluation.
So, I set up a meeting with the team, and prepared evidence-based insights better aligned with the user research. The personas were useful here!
In particular, I wanted to emphasize that there was no need for Dashboard, Calendar, and Messages features.
These wireframes were prototyped in Unity, by a Unity developer. Since that is not directly my IP, I am unable to display the working prototype on my portfolio. The prototype was then validated by users.
Successful usability tests :)
We conducted 20-30 minute usability tests with 7 employees. These employees had no experience with XR, and were not on-site engineers, but staff and workers around the office with physical labor jobs (potentially dangerous at times).
Reflections
It’s okay to do less than you expected.
Immediately after this experience, I felt a lack of accomplishment, because the work I did felt so small in comparison to the time I spent. Later, I learned to be proud of what I accomplished, since it was a truly user-driven process, and I learned a whole new way to approach design.
It’s okay to get it wrong many times.
After the first 2 iterations, I felt slightly awkward going back to my manager and asking for critiques over and over again. I felt like I was wasting his time. By the end of the internship, I understood that even if I felt awkward, I would not be able to make progress without that feedback. My learning was in my hands.
14% improvement in user engagement!
OUTCOMES
1
Are users able to follow the flow without confusion? Are they able to problem-solve when stuck?
2
How long do users feel comfortable and engaged training in this flow?
3
After this experience, are users enthusiastic to add this technology in their workflow?
Yes. Users relied on the voice command feature to navigate and troubleshoot the flow.
The average user engagement for our flow time was 11.5 minutes. In the past, the JioGlass has received an engagement time of approximate 10 minutes.
We still received mixed responses to this question. Users were still unable to see themselves reaching for the JioGlass beyond their Desktop.
KEY IMPROVEMENT
Engagement on the application improved by 14%! But, this test was taken under supervision. A true test would be if users truly found the technology useful over time, which is a future outcome I hope to see.
Jump Back To Solution
My role in developing the Learning and Development JioGlass application focused on three key areas: conducting user research, defining feature flows, and designing high-fidelity wireframes.
I was not involved in creating 3D renders or assets, which was a limitation that presented a unique challenge. Designing without a complete visual context required adaptability and imagination.
I worked under the supervision of the Digital Design team and Unity team. My coworkers helped me evaluate my process and outcomes consistently, giving me incredible support in a new environment.
Tesseract creates specialized applications for enterprise to allow engineers to receive training and hands-free on-site guidance from experts, on their flagship mixed reality smart glasses, the JioGlass.
Tesseract is part of the larger technology company Reliance, and the initial user base for the product would be engineers and employees working in subsidiaries of Reliance, such as Reliance Oil & Gas.
What is the product?
What was my role?
Expert Interviews
Qualitative Interviews
Sketching
Wireframing
Iteration
Usability Testing
Digital Design Internship
July 2022 - September 2022
Pen + Paper
Figma
FigJam
Unity
Roles & Responsibilities
Context
Tools
Individual
Tesseract Team:
1 Design Manager / 1 Designer /
2 Unity Developers
